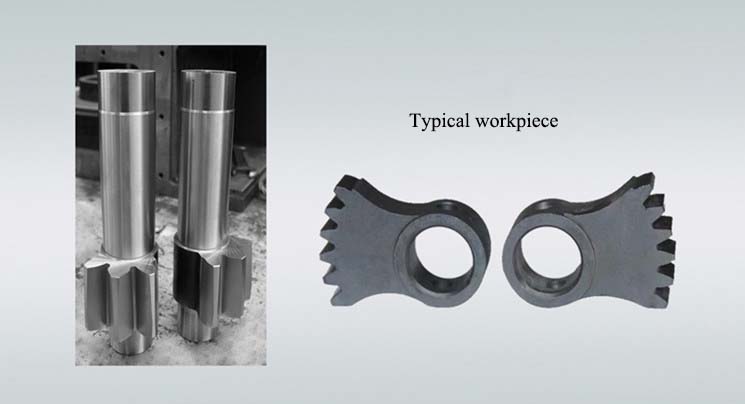

This machine is available for the rocker shaft of automobile redirector industry for processing sector gears with constant ratio, variable ratio, crowned tooth profiles or eccentric, etc. on steering shafts, especially suitable for mass production.

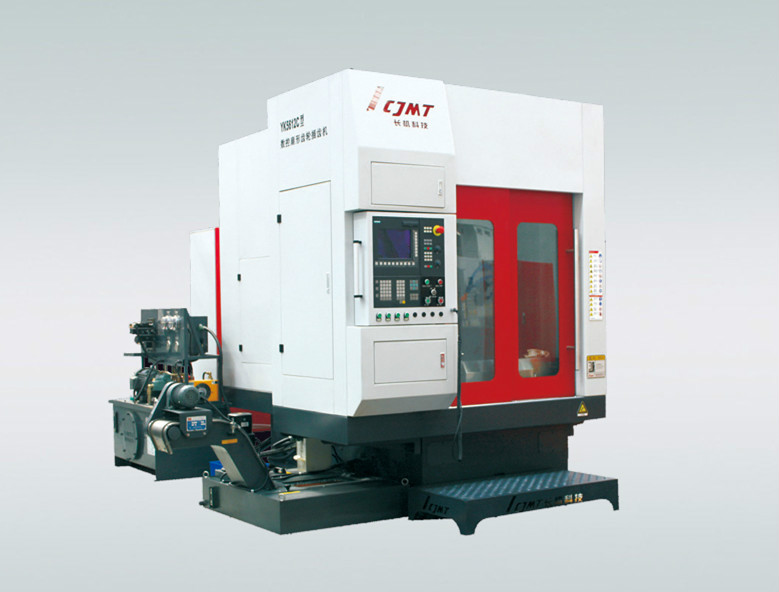

The machine is a multifunctional and fully automatic gear shaper which has 3 axes with the simultaneous movement of 3 axes. It integrated the latest developments of gear shaper machine, and applied the following technique: The bed guideways are adopted heavy linear guide with forced lubrication, overturn the column by hydraulic oil cylinder to change the cutting angle. The machine tool can selectively install hydraulic automatic locating device of workpiece.
|
Specifications
|
YK5612C
|
YK5612D
|
|
Max.diameter of workpiece（mm）
|
120
|
120
|
|
Max.module（mm）
|
12
|
12
|
|
Max.face width（mm）
|
80
|
80
|
|
Cutting angle
|
0~10°
|
0~10°
|
|
Max.stroke length（mm）
|
90
|
90
|
|
Stroke speed of main spindle（str/min）
|
60~600
|
60~600
|
|
Cutter relieving（mm）
|
≥0.5
|
≥0.3
|
|
Cutter adjusting（mm）
|
50
|
50
|
|
X-axis travel（mm）
|
150
|
125
|
|
Speed of X-axis radial feed（mm/min）
|
0~3000
|
0~3000
|
|
Diameter of worktable surface（mm）
|
300
|
300
|
|
Diameter of worktable bore（mm）
|
95
|
70
|
|
Distance between cutter mounting face and worktable surface（mm）
|
95~235
|
65~205
|
|
Y-axis travel（mm）
|
280
|
280
|
|
Total power（kw）
|
25
|
27
|
|
Total weight（Kg） approx.
|
7500
|
8000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
CNC system: 828D Siemens
|
|
Spindle frequency inverter: Schneider
|
|
One set hydraulic station: Outside
|
|
One set cooling and chip conveyor: Outside
|
|
Centralized lubricating: Batch-type
|
|
Electrical cabinet: Outside
|
|
Half cover
|
|
Accessories box
|
|
Sizing block
|
|
Optional Accessories
|
|

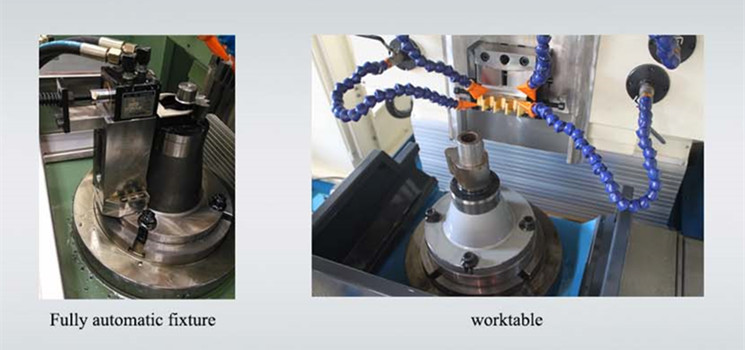

Hydraulic automatic locating device of workpiece
|
|
Fixtures
|
|
Adjustment block of angle
|
|
Special cutter adaptor
|
|
Cutter holder
|
|
Adtomatic load and unload institution
|
|
Full cover
|
