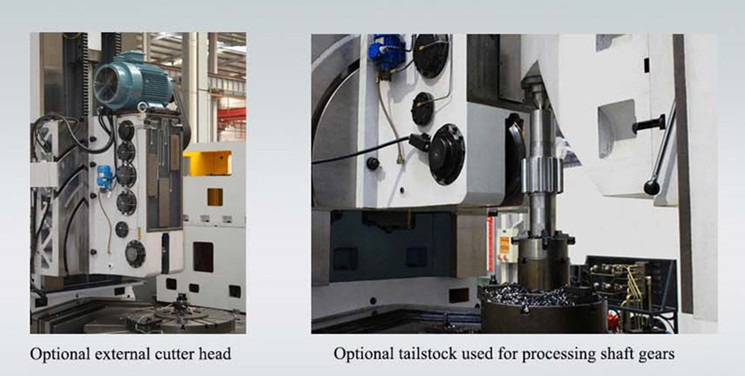

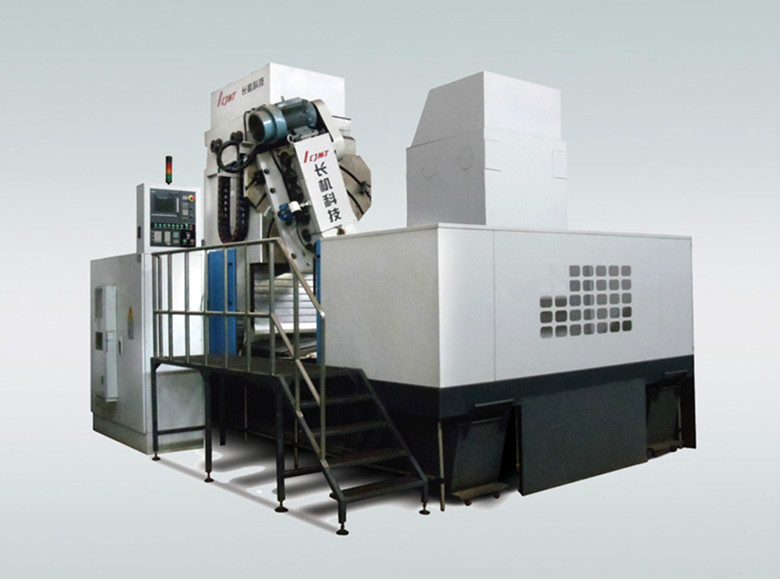

The machine is mainly used to machine internal spur and helical gears. It equipped with external cutter head and tailstock is available to process large shaft gears.
The milling cutter can rotate angle automatically, to complete the processing of helical gear.
The milling cutter head adopts dual drive and the gear pair will be anti-backlash at the same time.
Both the cutter head slide and column feed adopt overloading ball screw pair, the guideway adopt fixed position quantity. Between the column and machine bed, there is a lock oil cylinder for clamping.
The worktable adopts hydrostatic unloading with strong load and has lock function when it works.
|
Specifications
|
YK83125
|
|
Max.processing addendum circle diameter internal straight teeth/External teeth（mm）
|
1300/1300
|
|
Min.processing addendum circle diameter internal straight teeth/External teeth（mm）
|
450/0
|
|
Max.processing module（mm）
|
12/15
|
|
Max.helical angle
|
±30°
|
|
Max.processing face width internal straight teeth/External straight teeth
|
450/700
|
|
Max.annular thickness of the workpiece (including fixture)（mm）
|
370
|
|
Max.load bearing of worktable（Kg）
|
8000
|
|
Diameter of worktable（mm）
|
1300
|
|
Speed of worktable（rpm）
|
0~2.5
|
|
Max. overall diameter of milling cutter head（mm）
|
320
|
|
Max. width of cutter（mm）
|
60
|
|
Fixing diameter of facer（mm）
|
60
|
|
The motor power of internal/External milling head（Kw）
|
22
|
|
Center distance between milling cutter of milling head and worktable（mm）
|
950~1800
|
|
Center distance between milling cutter of internal gear's milling head and worktable（mm）
|
0~700
|
|
Center distance between milling cutter of external gear's milling head and worktable（mm）
|
0~920
|
|
Speed of milling cutter head（rpm）
|
70~140
|
|
Feed depth（mm）
|
0~20
|
|
Axial cutting speed（mm/min）
|
0~350
|
|
Distance from top tailstock to worktable surface（option）（mm）
|
-
|
|
Total power（kw）
|
50
|
|
Total weight（Kg） approx.
|
37500
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
CNC system: SIEMENS 828D
|
|
Spindle frequency inverter: Schneider inverter
|
|
Hydraulic system: Outside
|
|
Chip conveyor system: Outside
|
|
Centralized lubricating system: Batch-type
|
|
Electric cabinet: at left of machine,outside
|
|
Standard arbor:1 piece,arbor diameter Φ90
|
|
Cutter install assistant tool:1 piece
|
|
Half cover
|
|
Accessories box
|
|
Optional Accessories
|
|
The milling cutter frame
|
|
Tailstock
|
|
Fixture
|
|
Clampling
|
|
Milling cutter head
|
|
Oil cooler
|
|
Full cover
|
